SOCKET - UX DESIGN

Socket Renewable
Energy Start Up

Duration: 3 Sprints (2 weeks each)
Role: Contract UX Designer - Somo Global

Project Overview

To create a new utilities app aimed at a much younger demographic, I supported the existing Socket team in progressing ux wireframing to fast track from prototype to build.

The business challenge was to make sure customers are aware of when they are on and off track in terms of their payments, as accurately as possible, in simple ‘easy to understand’ terms (eg: relating units of electricity to the average us of electricity of a household item such as a kettle).

Some key points:
  • Customer queries (regarding billing) create
high overheads for the Business.
  • The call centre reported that customers did not understand the correlation between how usage is represented in kWh and how this converts to billing units, especially how seasonal changes affect revenue (eg: winter electricity use increases, which increases the bill a month later, but customers do not always understand this correlation over time).
  • The supplier charges a flat fee for the electricity, due to being a regulated service, but services like u-switch have greatly eroded customer loyalty*.
During the course of the project, I also informally gathered user-feedback about the energy use habits of friends and colleagues, so I could verify if the business assumptions were correct around the user challenges. After carrying out five user interviews, a pattern emerged:  a bigger challenge for customers was switching energy suppliers, as the data was not shared between competing suppliers, quickly or easily. From a business perspective, this was also an issue, as switching suppliers contributed to a large percentage of call-centre contacts, and this was very costly for Socket.

This was a more fundamental one to solve – looking at the source:
  • Connecting up customer data between suppliers – sharing it quickly and easily so when a switch occurs, so there is little delay (this can take anything from 2 days to 3 weeks in the current state)
  • This has implications on security, as sharing customer data between providers is not possible in the current state
  • It would also mean a wider technical infrastructure project which would be costly
  • Due to evolution of metering, individuals can now literally see their daily spend, so it’s no longer the biggest ‘problem’ to solve for customers from a CX perspective.
  • The ‘environmental’ and ‘sustainable’ aspects of energy supply could be given more focus within the product. Educating consumers about how their energy use affects the energy grid, and the planet etc, as the target segment that Socket were keen on capturing showed interest and concern about these issues.
Potentially - this could be one of the reasons the project was cancelled in January 2023.

*At the time, the utilities industry was not locking Customers in - which happened for a period of time from 2023/24- so Customers were able to switch suppliers at any point if a better offer was available.
Socket were created as an ‘incubator’ platform for a large and established renewable energy provider, who wanted to reach new audiences.

Due to the large numbers of competitors with identical services, the product strategy was to reach a much younger demographic, with the aim to secure new target segments.


 A mobile-first website which would exist and support client comms within the wider ecosystem.

The app would later be integrated with SMART energy meter data.
I joined mid-project as additional support to Marty, as the Team wanted to get ahead for the next few Sprints.

My role was to help ideate, and wireframe out the proposed user journey for the ‘logged in’ state of the product experience, which would then go onto design, validation and development.

Sprint 1

  • Week 1: “Design” sprint
  • Week 2: Sitemap, wire-framing dashboard



Sprint 2

  • Week 3: 5 x scenarios – mobile and desktop (pre and on-supply)
  • Week 4: Full user flow wire-framing based on agreed Scenario(s) for product demo

Sprint 3

  • Week 5 & 6: Wire-frame changes and specific Sprint tickets (UX cover over Dec)
During my time on the project I delivered user flow scenarios, concept designs (with both desktop and mobile viewport wireframes).

Marty & I then combined our wireframes, and created high-fidelity version of the proposed user journeys.

During the December holiday period, I covered for Marty, and handled a few other sprint tickets as they came up, namely:
  • 1064 – Logged in and out menu states for different user types
  • 1091 – Topping up/Verifone payment user journey
  • 1110 – Responsive ‘logo gallery’ panel with bullets
  • 1151 – Emergency contacts page
  • 1202 – Contact preferences “none selected” feedback states
I finished on the project by attending the Sprint Review remotely, held in Nottingham on the 17.12.2019. Some of my work (sitemap & ticket 1064) was included in the demo.

WEEK 1

Design sprint
overview

The design sprint allowed us to learn about the product, and get fully immersed in the next phase of the project. We spent time with Andy and Patrick (the Product leads from Socket) defining the purpose of the platform in more detail. We defined the tasks an individual would be able to carry out using the app:

As a customer I would like to:

  • Understand my payments (and how they relate to my usage)
  • Understand energy usage over time (and how that affects my payments and balance)
  • When my next payment is due
  • To understand my usage in comparison to other

We then sketched out possible ideas for what would become known as the “Balancer” part of the platform – some examples of which you can see below. A key benefit of working together on this part of the process meant we had direct access to information (eg: billing structure and energy unit calculations), which meant we could ideate using real data.

A photograph of a whiteboard with lots of writing all over it. In the centre we can read the word

Week 1 - Design Sprint

Defining the problem - understanding the business and customer needs

Writing out use cases and tasks

Focus point (energy use and billing) ideation, concept prototyping - Crazy 8s', presentations, voting

A selection of graphic visuals of concepts explored across the design sprint. In sequence these are 1. Balancer, 2. Energy Cycle, 3. Energy Wallet, 4. Seesaw, 5. Bar graph, 6. Bubble diagram timeline, 7. Socket gamefication timeline, 8. Horizontal bar, 9. Bubbles graph of annual forecast, 10 Balancer wheel. Below these ten, there are also some mobile screenshots showing these graphs placed on the mobile screens, as well as a user flow scenario across a Customer's annual billing - showing at which points during the seasons pain points come up due to payments being too low or bills being too high.

IN DETAIL

Concept 10: "Forecast Wheel" Feature

Using the smaller circle with kWh, a customer could move the slider around the bigger circle (showing a value in pounds), and see how the increase or decrease of potential energy use would affect their potential billing (without changing the amount due).

By allowing some freedom of movement, the user would gain a feeling of control. Even though this wouldn’t impact the following month’s bill without the Customers choice, it would allow someone to visualise the direct relationship their energy use has on spending, now and in the future.

This idea was not taken through to the next stage, but elements of the timeline were.


A detailed view of graph 10, the Balancer view. The balancer wheel mechanism is focused on a circle with the payment due amount in the centre of the circle. An arm is attached to this circle, which contains the kilowatt per hours view. The Customer can move the smaller circle around the larger circle and in so doing, adjust their potential forecast payment, seeing the direct relationship between the amount of money spent and how much energy this will provide them with.

Week 2

Define 'happy user flow' based on identified themes

Create sitemap, wireframe user flows & dashboard (V1)

Support with sprint tickets currently being worked on

Technical Architecutre
In Week 2, collaborating with the Socket Client team and our Technical team I received information about the overall technical architecture and how Socket would integrate with existing systems - and created the diagram below. The Socket product would consist of the “Brochureware” or marketing/sales platform, the Community ‘hub’ and the customer portal (“My Account”):

A basic technical architecture map of the Socket Home Brochureware, the Socket Community and the logged in state of the Socket Account.

Sitemap
Sitemapping the full product helped us reach a consensus on which part of the experience would be taken through into prototyping, design and development - and who would work on which parts of the App. Marty & I were dividing the work between us to ensure we could meet the deadlines - and
at wireframe stage the 'style' of wireframes didn't matter - as the UI designer (Dave Allen) was ensuring cohesion across the interface design using the Socket Design System.


A full sitemap diagram of the proposed Socket App platform showing the differences between a logged out and logged in state.

MVP Proto-journey
Initially, I created a proto-user journey in Sketch. At the end of the Sprint 2, I updated this and tied the wireframes together with the prototype to the flow.

The proposed MVP socket user journey - showing the progress of a user from receiving a notification, to logging into their Socket app dashbaord, understanding their billing and payments through interaction with the app, changing their regular payment to balance with their usage, and receiving notifications and feedback throughout this journey. The journey is split across three 'levels ' - the top being the steps described above, the second layer mapping the thoughts and potential emotions of a Customer during this process, and the last row showing the actions the Customer takes on the app.

This proto-user journey then informed the user-flows, which helped us get us consensus on which parts of the experience to prototype (From the “Dashboard” to using the “Balancer”, based on the Scenarios - see Week 4)

A rough hand sketched user flow with red outlines on paper, showing the steps a Customer would take from using the

Week 3 (Sprint 2)

Themes and scenarios
From the initial Design Sprint and earlier sessions, some themes emerged that would need to be considered throughout the design process.

These helped us to:

  • Keep aligned/focused on what to wireframe
  • Begin wire-framing ideas
  • Arrive at the ‘use flow’ scenarios for the Dashboard (this was the focus of the next sprints, so we could do a demonstration of one part of the experience).

Themes

  • Timeline (checking past/current/future states of account)
  • Seasonal (price/energy use changes based on seasons)
  • Cause > Effect (topping up/taking out and how this affects the account)
  • Energy of Things (relating units of energy to customers through easy to understand concepts of everyday objects like kettles, heaters etc.
  • Pots (savings/winter pocket/wallet)
  • Education (hints and tips, energy education)

Dashboard and balancer scenarios/use flows:

  • Pre-supply
  • New customer dashboard + “Balancer”
  • “Happy path”
  • Usage is higher than payment
  • Increase in use continues
  • Decrease in use
  • No payment arrangement set up
  • Cancels/pause direct debit, then resumes payments

I’ll go into more detail on these in the next section.

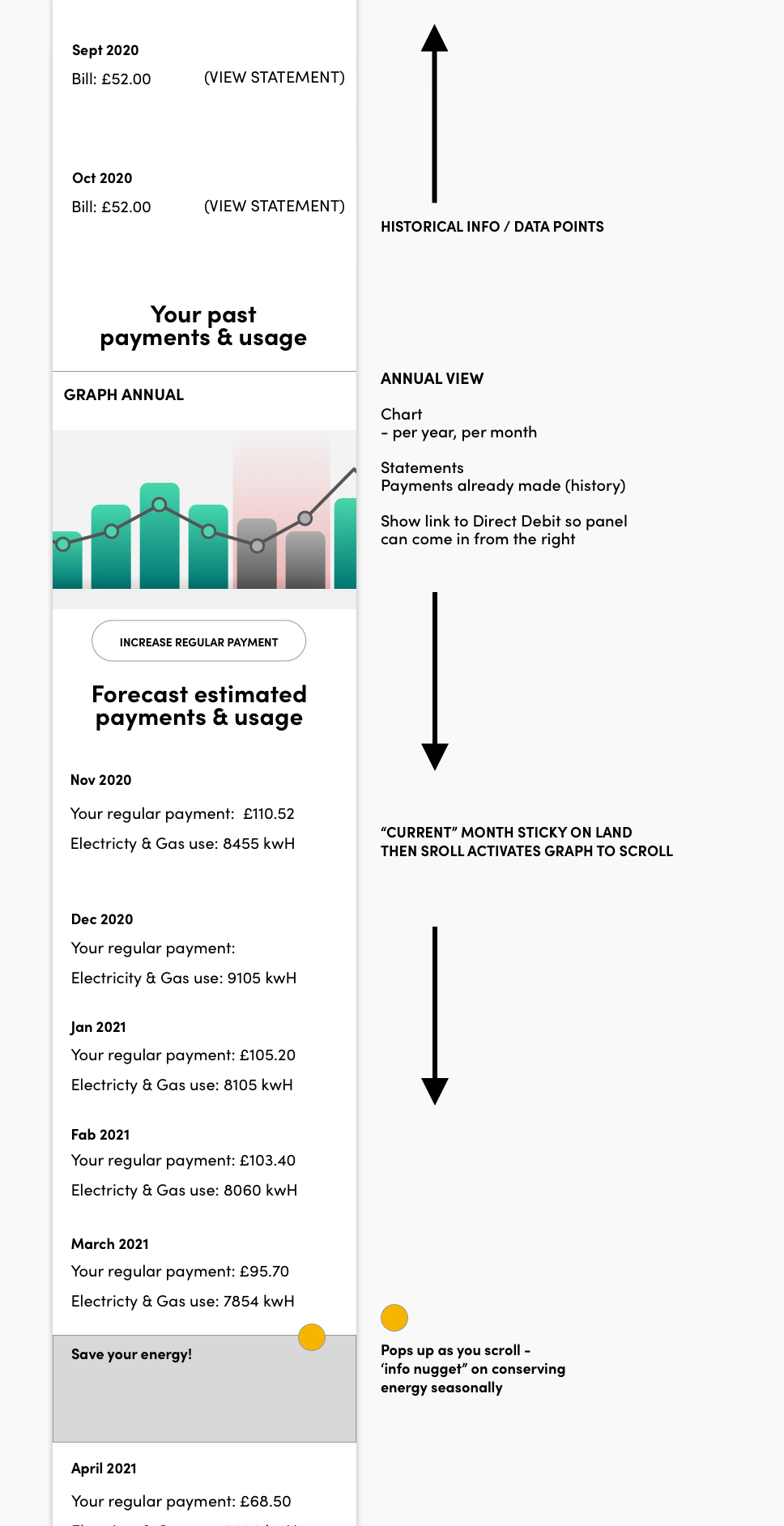

A “Timeline” theme wireframe example:


A “Timeline” theme wireframe example - showing the user past payment & usage across an annual use view. The chart can also show the user monthly use and there's a call to action button for the Customer to click on to increase their regular payment as the chart is showing that they are currently underpaying.

IN DETAIL

"The Balancer"

Based on the Scenarios outlined above, the business challenge was to be able to visualise to Customers who are paying a set amount, why they might need to top up or reduce their spend periodically. This would also have the added benefit of supporting the Customer Service team in communicating any automatic bill adjustments to Customers.

We didn’t want to sacrifice time designing functionality before solving the problem, so we included a very basic visual of a ‘balancer’ on the wireframes at the MVP stage. The aim was to get a user-flow prototyped, and then test with users. Based on user feedback, we could then further iterate and get the right level of detail.

A bar graph with two columns - one yellow showing usage, and another pink column showing payments. There are five variations of this graphs on the image, but one is highlighted while the others are greyed out - showing the 'initial' idea and the variations which were showing differences to a customer across what was paid, what was unpaid, their monthly balance and any additional money left in their account.

Week 4

Wireframing Scenarios
I used Sketch to wireframe responsive (mobile, desktop and tablet) versions of the Scenarios identified, with particular focus given to the user flow mentioned before – as this was the ‘flow’ that was going to be taken through to design and development for the product demo to the wider team at the end of Sprint 3.

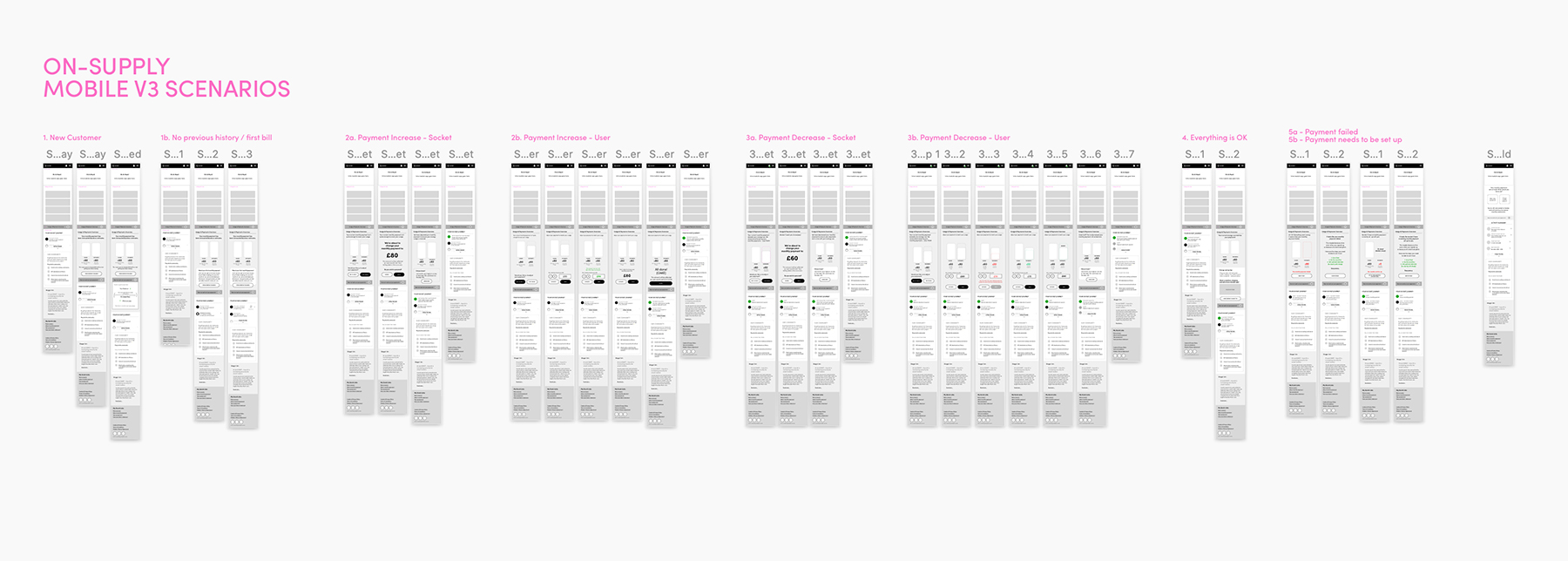

A screenshot of my sketch file showing all the different scenarios described below, with both desktop and mobile screens visible.
Scenario: Pre-supply
A. Account still being set up, inactive areas shown in grey
B. For time being “Activity summary” is replaced with “Status notifications”
C. Switch takes place (notification “No customer action needed”)
D. Opening meter read (supply start date in X days)
E. On supply (supply start date)
Scenario: New customer dashboard + balancer
A. No past user-data (meter or payments) view
B. Average balance of estimated bill (pre-bill) view
C. Smart Meter readings – billing adjusts automatically after 1 month view
Scenario: “Happy path”
No actions required by customer or Socket
Scenario: Usage is higher than payment
Customer can let Socket adjust payment directly on dashboard, or decide to balance it themselves (using “Balancer”)
Scenario: Increase in use continues
A. Customer has not increased their monthly regular payment, notifications issued
B. Customer has not increased their monthly regular payment, after a [number/type] of notifications, Socket have adjusted the payment.
Scenario: Decrease in use
Credit accumulates, notified to decrease regular monthly payment.
Scenario: No payment arrangement set up
A. No payment set up, get in touch notification
B. Payment has failed, get in touch notification
Scenario: Cancel/pause direct debit, then resumes payments
A. User can pause/cancel their direct debit
B. User can reinstate their monthly payment

Week 5 (Sprint 3)

User journey wireframes in full

We decided to focus on a the beginning of the customer journey for the upcoming Presentation Demo at the end of the sprint. This was the Pre-Supply to New Customer scenario, including the pre-supply notification journey. I wire-framed the full journey, including the (so far) identified scenarios on mobile.

As we were progressing,  I’d upload the wireframes to Zeplin, which allowed Dave to work in tandem with us, creating a smooth production workflow, through to the Scrum Master, who would create tickets on Jira for the Developers to progress.

A zoomed out view of Sketch wireframes, showing two scenarios across pre-supply desktop screens in different states, and some pre-supply mobile screens. A zoomed out view of a Sketch wireframes, showing eight scenarios across on-supply mobile screens in different states.

High Fidelity
Marty & I then combined our wireframe files, and created a single source of truth of the full proto-user journey.

A high fidelity version of the user flow showing the detailed user interfaces designed with multiple stages, screens, and interconnected steps for the Socket app.

IN DETAIL

Sign-up process flow

Collaborating with Andy and Patrick, we defined the sign-up touch-points (where Socket would be able to communicate with Customers at sign up). This was based on back-end technical, and customer-centre support (CX) specifications and constraints. I wrote the copy in the interim, with the understanding that changes could be made closer to launch.

A detailed view of the sign-up process taking a Customer from the date they signed up and progressively alerting them to changes in the progress while they switch to Socket as their new energy provider.

Week 6

Ticket 613

In the first part of the week, I worked on ‘The Balancer’. At first, we used a placeholder on the user flows. However, having gathered research from the Call Centre (facilitated by Patrick), we had more detailed information to wireframe with, so I defined three visual options, checking it across edge case scenarios, using more realistic data:

1. Developing the ‘bar’ option further
2. ‘Energy cycle’ concept from the ideation sessions
3. ‘Tetris/Calendar’ time-block option

The assumption we were working with is that the dashboard balancer would show ‘current monthly average use’ until a SMART meter was installed, after which the app would sync up, and show daily balances.


A detailed infographic showcasing three data visualization methods: Balancer bar, Balancer wheel, and Tetris/daily view plot, each with multiple examples and explanatory annotations.

IN DETAIL

Topping up: flinto prototype

One item which we wanted to test with users was the ‘topping up’ part of the balancer journey. We couldn’t reach agreement on whether it was better to:

Option A:
Show the ‘top up’ amount changing the monthly payment amount visually or

Option B:
If the monthly payment total should remain static, and if we should only indicate the increase in the ‘top up’ field.

I prototyped this in Flinto so the team could guerilla-test internally, after the Christmas break.


I also wire-framed the Statements & Transactions section, as this was directly related to the way the Balancer and "Wallet" concept would work.

The Statements and Transactions view of the Socket app, showing the monthly summary period, with a tab which allows the Customer to switch between seeing all transactions, just payments, or refunds & rewards.

Tickets 1064, 1091, 1110, 1151, 1202

As the last sprint fell during the December holidays, I was also covering for Marty, and handled a few other sprint tickets as they came up, namely:

1064 – Logged in and out menu states for different user types
1091 – Topping up/Verifone payment user journey
1110 – Responsive ‘logo gallery’ panel with bullets
1151 – Emergency contacts page
1202 – Contact preferences “none selected” feedback states

A screenshot of an online Google Meetz call, showing the blurred out faces of the other members of the team, along with my face, and the JIRA sprint board showing the tickets which were being worked on during the december holidays.
Logged in and logged out states of the menu for brochureware - across the two types of customers (ones who have both a
Some dashboard wireframe screens showing a desktop view of the top up payment process in five steps.
A wireframe showing the difference between logo sizes on different viewport screens on mobile devices and how it should look next to bullet points.
Marketing Contact Preferences Wireframe showing options for a Customer to choose from including email, sms, phone, post and carrier pigeon.
Ticket 1115

I finished the project by attending the Sprint Review remotely, held in Nottingham on the 17.12.2019. Some of the work (sitemap & ticket 1064) was included in the demo. The project was cancelled in early January.

A screenshot of the Sprint Demo screen presentation, showing a video view of the team presenting and the Sprint goals achieved in Sprints 1-6.

The bigger picture

During the course of the project, I also informally gathered user-feedback about the energy use habits of friends and colleagues, so I could verify if the business assumptions were correct around the user challenges. After having asked approximately five individuals, a pattern emerged: the challenge for customers was switching energy suppliers, as the data was not shared between competing suppliers, quickly or easily.

An excerpt from a prospective utilities Customer email - with text highlighted

From the business perspective, it was also an issue, as switching suppliers contributed to a large percentage of call-centre contacts, and this was very costly for Socket.

The real challenge was a more fundamental one to solve – looking at the source:

  • Connecting up customer data between suppliers – sharing it quickly and easily so when a switch occurs, so there is little delay (this can take anything from 2 days to 3 weeks in the current state
  • This has implications on security, as sharing customer data between providers is not possible in the current state
  • It would also mean a wider technical infrastructure project which would be costly
  • Due to evolution of metering, individuals can now literally see their daily spend, so it’s no longer the biggest ‘problem’ to solve for customers from a CX perspective.
  • The ‘environmental’ and ‘sustainable’ aspects of energy supply could be given more focus within the product. Educating consumers about how their energy use affects the energy grid, and the planet etc, as the target segment that Socket were keen on capturing showed interest and concern about these issues.

Interestingly, this is something we came across in research on a project I worked on in 2024, for E.ON Next...
